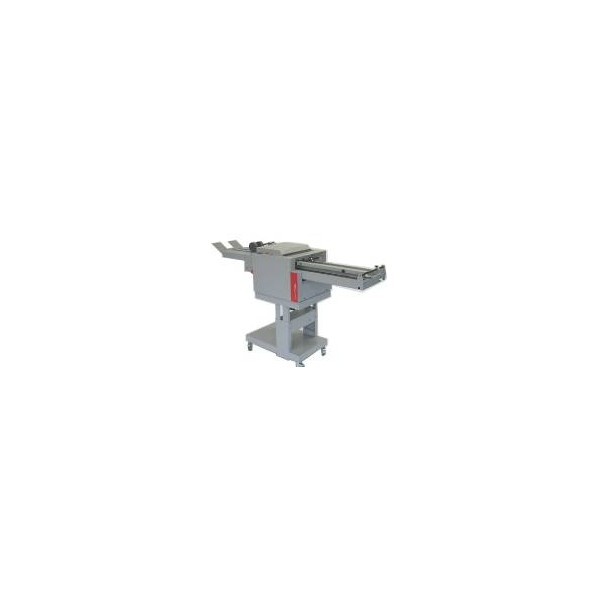

Multigraf MKF35 RC Modular Knife Folder

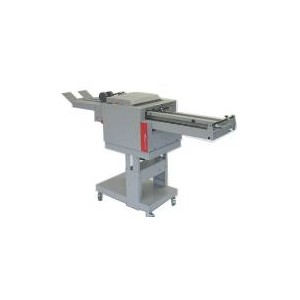

The MKF-35 Modular Knife Folder is a production style folding machine with a speed of 15,000 cycles an hour. It can handle cardboard, greeting cards, brochures, booklets and newspaper.

More details


POA

MKF35RC

Availability: PLEASE E-MAIL FOR BEST PRICE!

2 items in stock





12 other products in the same category:

The Multigraf modular knife folder MKF-35 is an extremely flexible solution for the folding of paper stocks and weights up to 3 mm in thickness Cardboard, greeting cards, booklets, folded sheets and leaflets can all be easily and precisely folded. It's unique design allows the machine to be used online to the Multigraf's folding and creasing machines as well as with machines from other manufactures.



Highlights



  • Modular
  • User friendly
  • Versatile
  • Multifunctional
  • Create your own machine by choosing: infeed system, counter, delivery, machine table.



Typical Applications



  • Cardboard
  • Greeting cards
  • Booklets
  • Folded sheets
  • Leaflets



Why buy? For business owners

To respond to the different requirements, a choice of five infeed systems are available. The MKF-35 , may used as a parallel or a right angled folder. In combination with the correct infeed device and a height adjustable stand. It can be used as a versatile folder in combination with different applications.

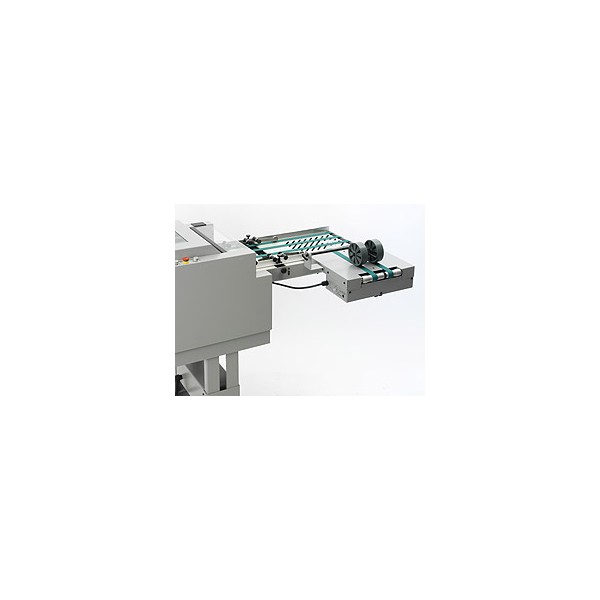

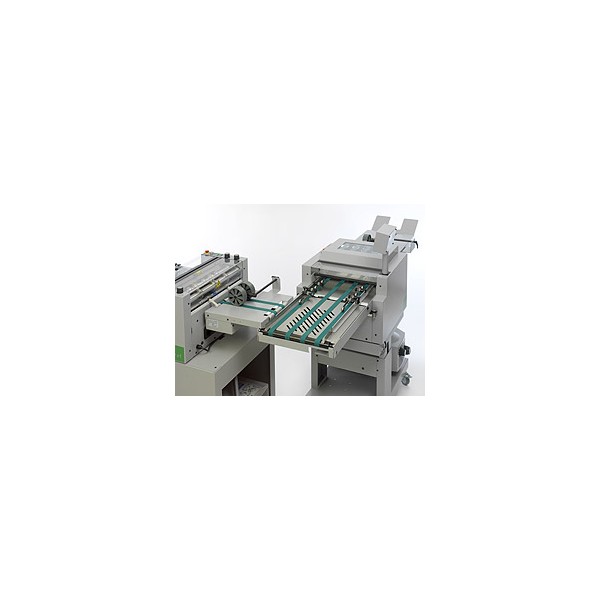

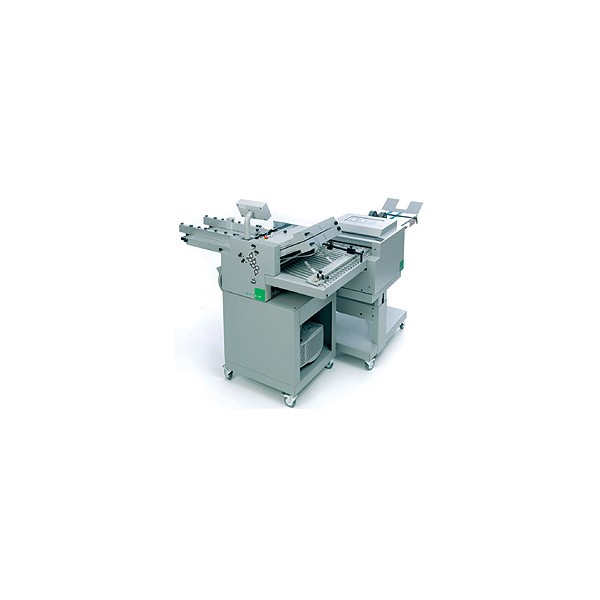

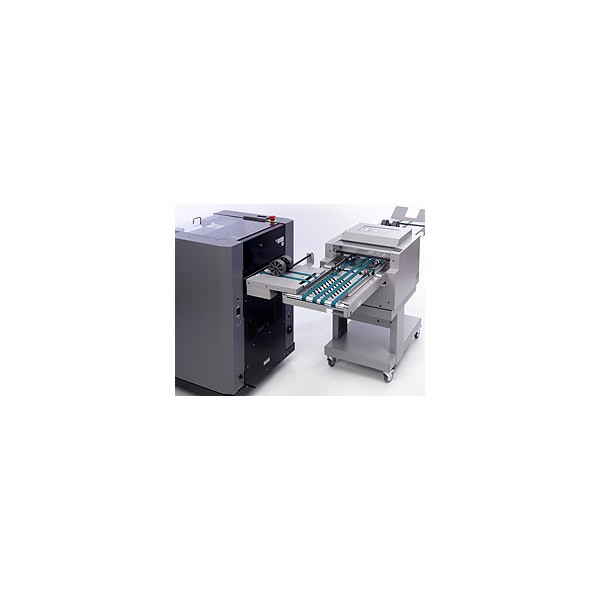

Together with a standard vacuum or a deep pile feeder, the MKF-35 runs as a stand-alone parallel folding device. As soon as a belt or roller infeed conveyor is applied, the machine can run products online from another unit. This same configuration offers the possibility of some online application with machines other than the Multigraf products.

Possible online applications are with creasing machines, endless form cutters, digital printers and booklet makers of any type.

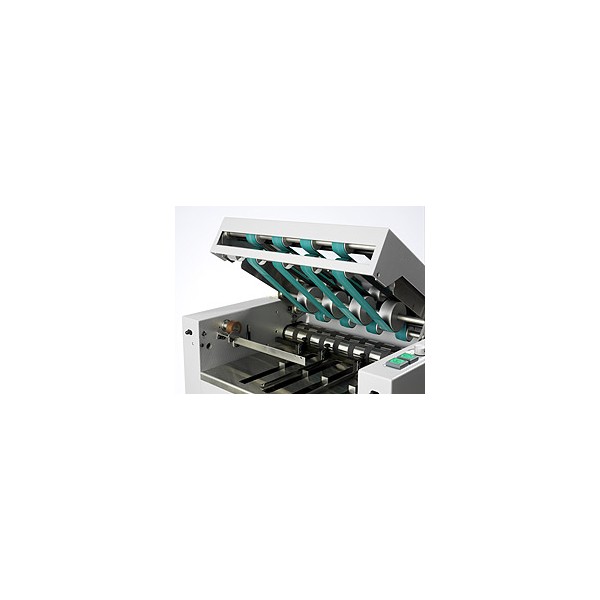

The MKF is equipped with adjustable, heavy duty spring loaded combination rollers to achieve accurate and precise folding of difficult and thick products.

The modular knife folder MKF-35 is a multifunctional product which offers a great variety of different solutions. No other knife folder in the market is as versatile and multifunctional as Multigraf's modular knife folder MKF-35.

Why buy? For operators

Adjustments of the machine

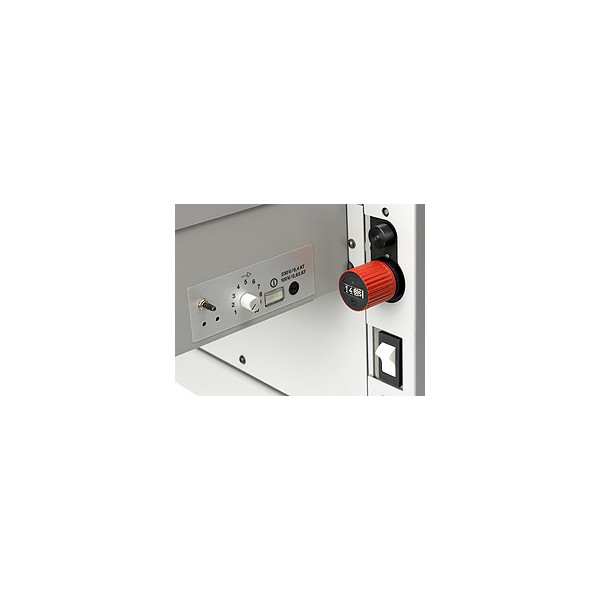

The operation of the MKF-35 is easy. The length of the fold adjusts by a simple dial with an integrated millimetre scale. The backstop is equipped with a skew adjustment. All other functions are fully automated and self controlled.

Heavy and solid construction
The MKF-35 knife folder is of a heavy and sturdy construction. Combination rollers assure an accurate folding process. The roller pressure is adjustable. The MFK-35 has been designed to achieve an accurate and professional finish, together with high productivity for a long working life.

Customer Comments (Example from UK)

"We produce a quarterly mailing of 30,000 eight-page, A4 newsletters for one of our customers. With the new Royal Mail charges, it would have cost 44p per item in postage alone, which became a concern for the customer and raised doubts as to the cost-effectiveness of mailing in the existing A4 format. As the MKF-35 Knife Folder allows us to go from A4 to A5 format, we approached the customer to explain the postage charge, and asked if they would object to changing to a smaller A5 size,which also offered a reduction of around 12p per item on postage in the process. Naturally they were elated at the staggering overall cost saving of more than £10,000 per year, that we were able to pass onto them.Since integrating the knife folder in November 2006, we have not wasted time in putting the unit through its paces. In two weeks we put 30,000 Christmas cards through it, almost 40,000 newsletters and over 20,000 A3 folders. All told, in the month between its installation and our Christmas mailing deadline, it handled around 100,000 pieces."
Commercial Printer, Dorset


Specifications:



  • Minimum infeed width 100 mm
  • Maximum infeed width 350 mm
  • Minimum folding length 60 mm
  • Maximum folding length 240 mm
  • Minimum sheet size 100 x 120 mm
  • Maximum sheet size 350 x 500 mm
  • Production speed Up to 15‘000 cycles/h
  • Type of folding rollers Combination rollers (steel/rubber)
  • Fold roller adjustment Yes, to be adjusted to the product’s thickness, spring loaded
  • Maximum thickness 2-3 mm, depending on the flexibility of the product
  • Compatibility To be combined with all Multigraf feeders and paper transfer conveyors.
  • Online use with a number of other machines and equipment
  • Use Parallel- and cross folding (right angle)
  • Weight 90 kg, including stand
  • Power supply 230 V, 50 Hz / 115 V, 60 Hz
  • Dimension 506 x 530 mm (without feeder and delivery)



Optional Extras

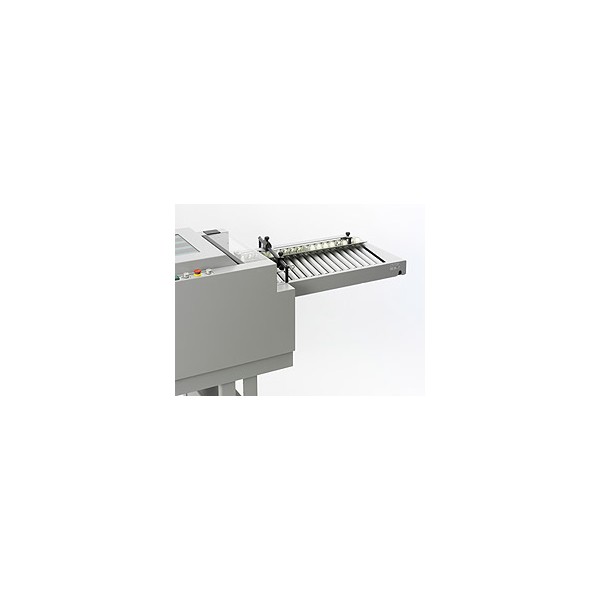

  • Roller Guide Option
  • Side Lay Register Table
  • Electric Transfer Unit

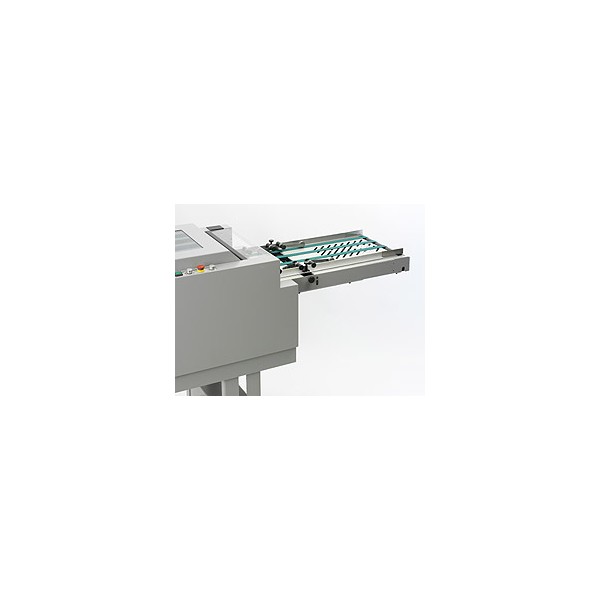

  • Straight Belt Table A3
  • Middle Guide
  • Deep Pile Feeder
